Product Description
| Detailed introduction· |
| Name |
| GSM/GPRS/AMPS/umts ANTENNA FOR AUTOMOBILE |
| |
| Model No. |
| GSM-BH020 |
| |
| Product Description |
|
Center frequency:
824MHz~894MHz(AMPS)
900MHz(GSM)
1800MHz(DCS)
2100MHz(3G-UMTS)
2400MHZ(WIFI)
V. S. W. R 2.0: 1
Impendence: 50 ohm
Typical gain: 3.5dbi
V. S. W. R <2.0
Max Input power（W） 60
Input Impedance（Ω） 50
Polarization Type Vertical
Antenna Length（mm） 99 x 26 x9
Cable Length﹙mm﹚ 2000,3000,5000 or other
Cable Type RG174
Connector Type SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting: Adhesive(3M double glue paper)
Housing Black
Storage Temperature -45℃ to +75℃
Operating Temperature -45℃ to+75℃
|
|
|
Price Terms︰
FOB Shenzhen
Payment Terms︰
TT/Paypal/Western Union
Packing︰
250pcs/box
Lead Time︰
3-5days after receiving your payment
Standards Certificate︰
ROHS

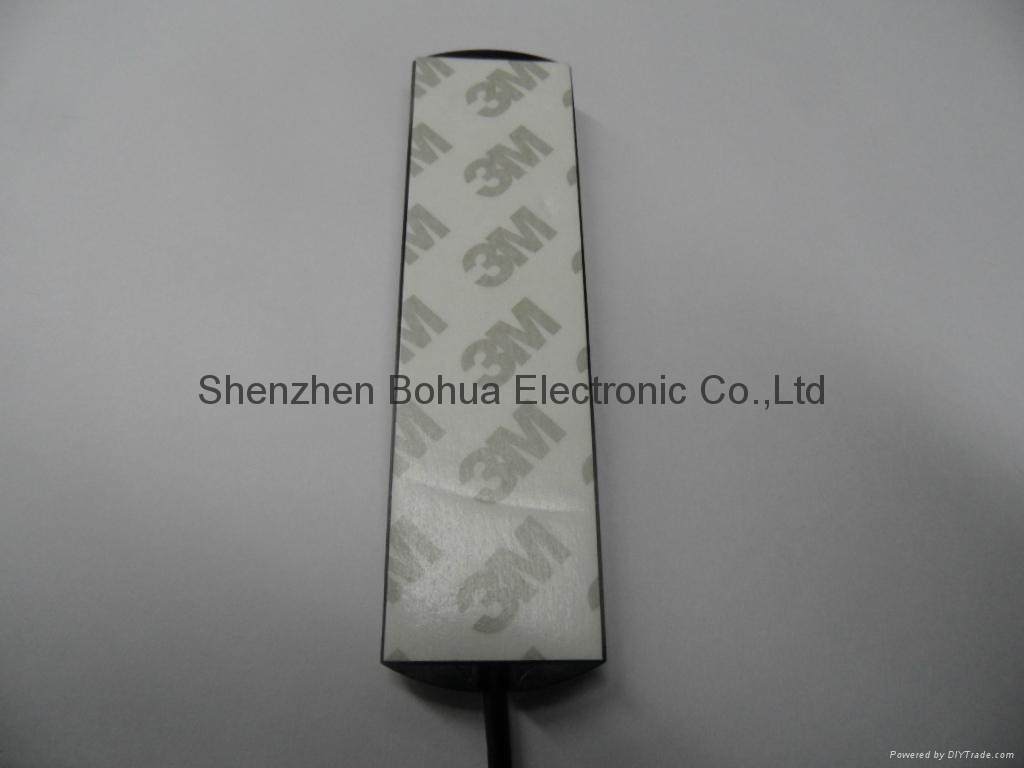

Product Image
